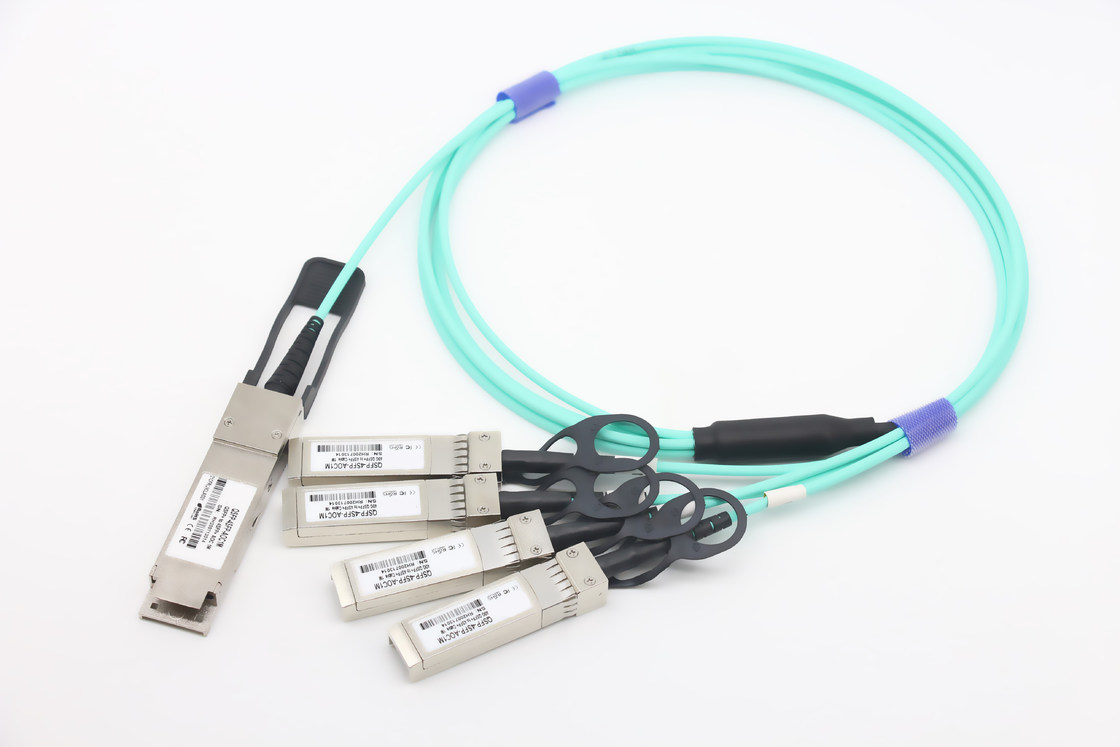

7m Cisco Compatible FY-QSFP-4X10G-AOC7M 40G QSFP+ to 4x10G SFP+ Breakout AOC Active Optical Cable

7m Cisco Compatible FY-QSFP-4X10G-AOC7M 40G QSFP+ to 4x10G SFP+ Breakout AOC Active Optical Cable

(QSFP+ to 4XSFP+)





40G QSFP+ to 4x 10G SFP+ breakout Active Optical Cables (AOCs) offer IT professionals a cost-effective interconnect solution for merging 40G QSFP+ and 10G SFP+ enabled host adapters, switches and servers.

For typical applications, users can install this breakout or splitter cable between an available QSFP+ port on 40GE switch and feed up to 4 upstream SFP+ enabled 10GE switches. Each cable features a single SFF-8436 compliant QSFP+ connector rated for 41.2Gb/s on one end and 4 SFF-8431 complicant SFP+ connectors rated for 10.3Gb/s each on the other end.





Features

• SFF-8436 QSFP+ compliant
• SFF-8431 SFP+ compliant
• Hot-pluggable electrical interface
• 850nm VCSEL transmitter
• PIN photo-detector receiver
• Up to 100m on OM3 MMF
• Operating case temperature range 0°C to +70°C
• All-metal housing for superior EMI performance
• Low power consumption < 1.5W (QSFP+) < 1W (SFP+)
• RoHS compliant (lead free)



Applications

• Applications
• IEEE 802.3ba 40GBASE-SR4
• IEEE 802.3ae 10GBASE-SR
• InfiniBand SDR/DDR/QDR
• High-Performance Computing (HPC) clusters
• Servers, switches, storage and host card adapters



Specifications

Parameter	Description
Module Form Factor	QSFP+ (Supports SFF8436) to 4X SFP+
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 41.25Gbps
BER	<10-12
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8436)

























































Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery







Ordering Information:

Part Number	Product Description
FY-QSFP-4X10G-AOCXXXM	40Gb/s QSFP+ – 4x10G SFP+ Active Optical Cable



Notes:

where "xx" denotes cable length in meters. Examples are as follows:

xx = 03 for 3m, xx = 10 for 10m, xx = 50 for 50m, xx = A0 for 100m







If any questions, please find Ms Jade
