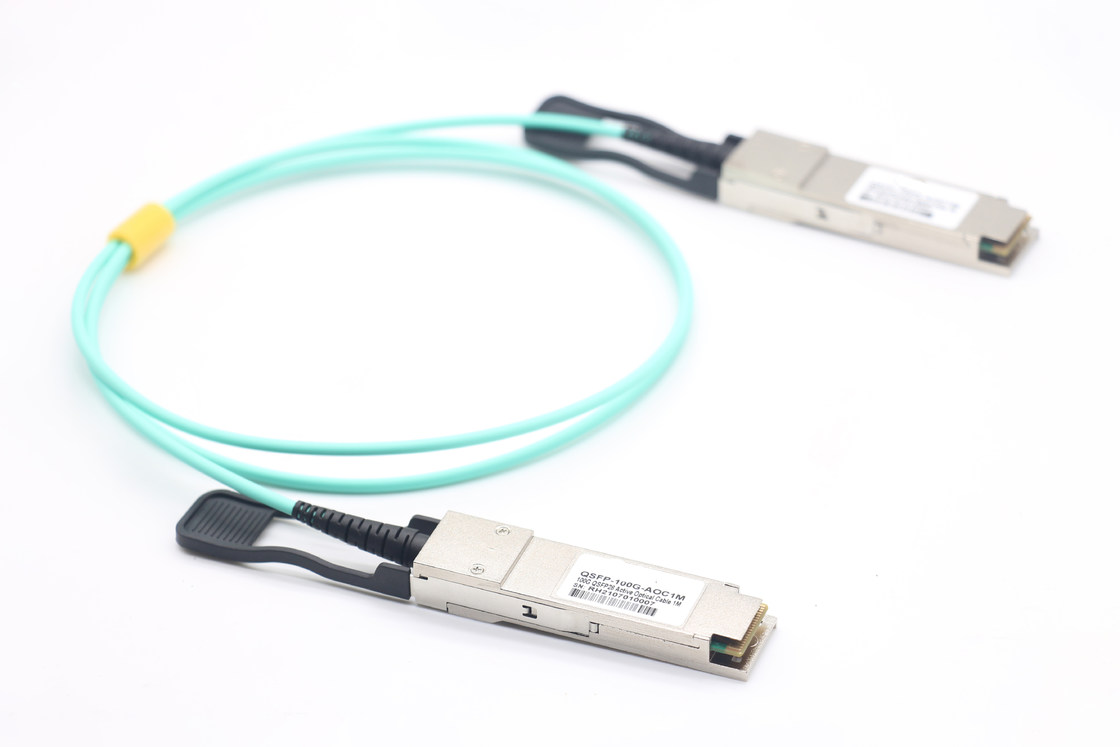

Name: 7m Cisco Compatible FY-AOC100G-AC7M 100G QSFP+ Active Optical Cable
Brand: Flyrom Technology Co.,Limited
SKU: FY-AOC100G-AC7M
Availability: InStock

خانه محصولات کابل های نوری فعال

7m Cisco Compatible FY-AOC100G-AC7M 100G QSFP+ Active Optical Cable

جزئیات محصول:

محل منبع:	چین
نام تجاری:	FLYROM
گواهی:	CE,ROHS
شماره مدل:	FY-AOC100G-AC7M

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Please send inquiry to sales@flyromtech.net
جزئیات بسته بندی:	بسته بندی خنثی
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	T/T، L/C
قابلیت ارائه:	1000 عدد در ماه

اکنون تماس بگیرید

توضیحات محصول جزئیات

گارانتی:	3 سال	نرخ داده:	100 گرم
گواهی:	CE RoHS FCC	نام محصول:	کابل AOC 100Gb/s QSFP28
رابط:	بسته Qsfp28	سازگار است:	QSFP28 MSA، H3C، Cisco، Juniper، Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C و غیره.
برنامه:	مرکز داده، 100GBASE-SR/SW 100G اترنت، مخابرات، Plug-and-Play	دما:	0 تا +70 درجه سانتی گراد
طول:	7 متر	نوع کابل:	کابل نوری

7m Cisco Compatible FY-AOC100G-AC7M 100G QSFP28 to QSFP28 Active Optical Cable (QSFP28 to QSFP28)

The Cisco Compatible QSFP28 Active Optical Cables is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet , Infiniband FDR/EDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps ,up to 70 m using OM3 fiber or 100 m using OM4 fiber.

Features

Four-channel full-duplex active optical cable
Multirate capability: 10 Gb/s and 25 Gb/s per channel
QSFP28 high-density form factor
Reliable VCSEL array technology using multimode fiber
power dissipation: <3.5W per cable end
Commercial operating case temperature range: -40 ºC to 70 ºC
UL certification optional cables
Hot Pluggable

Applications

IEEE 802.3bm 100GBASE SR4 and
40GBASE SR4128G Fiber Channel
Infiniband FDR/EDR

Specifications

Parameter	Description
Module Form Factor	QSFP28 (Supports SFF8431/SFF8432/SFF8472)
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 103.125Gbps
BER	<10-12
Operating temp. range (cage temperature)	-5 °C to + 85 °C (normal handing) -10 °C to +95 °C (performance degradation is acceptable in this range)
Iransport temp.range (in packed condition)	-40 ℃ to +70 ℃
Storage temp. range (in packed condition)	-25 ℃ to +55 °C
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8472)

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Mechanical Dimensions:

7m Cisco Compatible FY-AOC100G-AC7M 100G QSFP+ Active Optical Cable

Ordering Information:

Part Number	Product Description	Fiber Spec.
FY-AOC100G-AC1M	100G QSFP+ Active Optical Cable 1Meters	OM2or OM3
FY-AOC100G-AC3M	100G QSFP+ Active Optical Cable 3Meters	OM2or OM3
FY-AOC100G-AC5M	100G QSFP+ Active Optical Cable 5Meters	OM2or OM3
FY-AOC100G-AC10M	100G QSFP+ Active Optical Cable 10Meters	OM2or OM3
FY-AOC100G-AC30M	100G QSFP+ Active Optical Cable 30Meters	OM3
FY-AOC100G-AC50M	100G QSFP+ Active Optical Cable 50Meters	OM3
FY-AOC100G-AC100M	100G QSFP+ Active Optical Cable 100Meters	OM3
