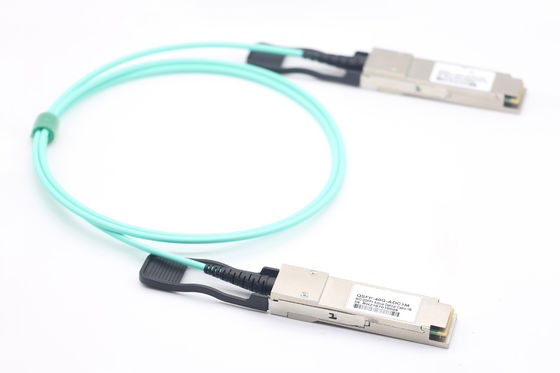

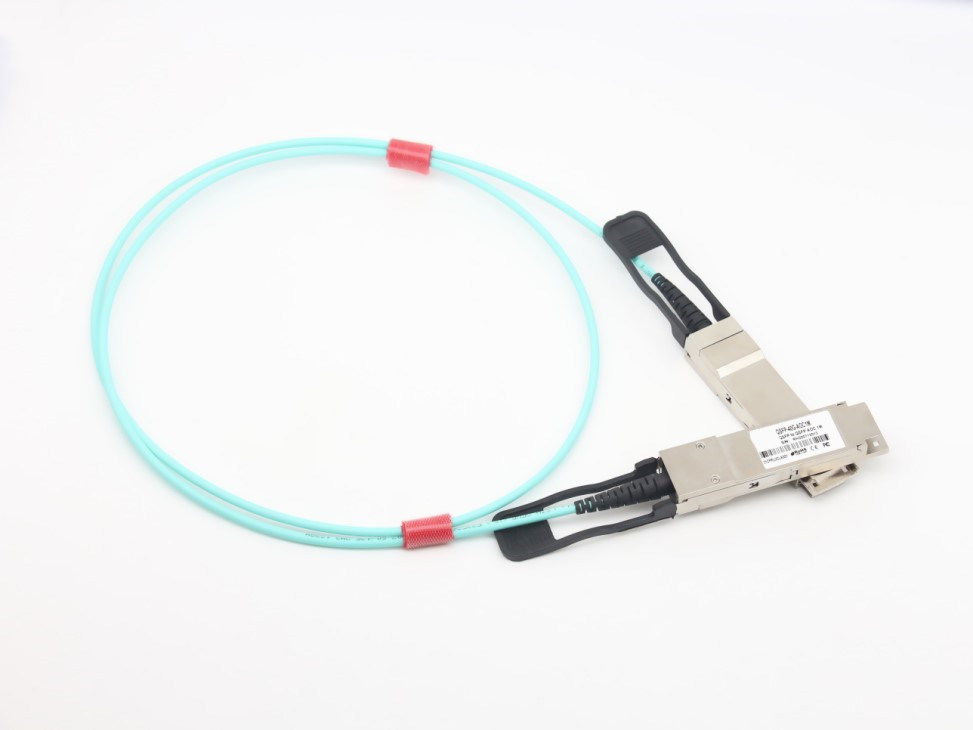

5m Cisco Compatible FY-AOC40G-AC5M 40G QSFP+ Active Optical Cable

5m Cisco ​Compatible FY-AOC40G-AC5M 40G QSFP+ to QSFP+ Active Optical Cable (QSFP+ to QSFP+)





The Cisco Compatible SFP+ Active Optical Cables are QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.





Features

• Four-channel full-duplex active optical cable
• Transmission data rate up to 11.3Gbit/s per channel
• Reliable VCSEL array technology using multimode fiber
• Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
• Low power consumption <1.5W
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant
• Hot Pluggable QSFP form factor



Applications

• Infiniband QDR/DDR/SDR
• Datacenter
• 40G Ethernet
• 4G/8G/10G Fibre Channel



Specifications

Parameter	Description
Module Form Factor	QSFP+ (Supports SFF8436)
Protocols Supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate	Rate 1 to 41.25Gbps
BER	<10-12
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical
Management Interface Serial	I2C (Supports SFF8436)

























































Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery



Ordering Information:



Ordering Information:



Part Number	Product Description	Fiber Spec.
FY-AOC40G-AC1M	40G QSFP+ Active Optical Cable 1Meters	OM2or OM3
FY-AOC40G-AC3M	40G QSFP+ Active Optical Cable 3Meters	OM2or OM3
FY-AOC40G-AC5M	40G QSFP+ Active Optical Cable 5Meters	OM2or OM3
FY-AOC40G-AC10M	40G QSFP+ Active Optical Cable 10Meters	OM2or OM3
FY-AOC40G-AC30M	40G QSFP+ Active Optical Cable 30Meters	OM3
FY-AOC40G-AC50M	40G QSFP+ Active Optical Cable 50Meters	OM3
FY-AOC40G-AC100M	40G QSFP+ Active Optical Cable 100Meters	OM3















































If any questions, please find Ms Jade
