| محل منبع: | چین |
| نام تجاری: | FLYROM |
| گواهی: | CE/ROHS |
| شماره مدل: | SFP-10G-LR |
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | Please inquiry jade@flyromtech.net |
| جزئیات بسته بندی: | بسته بندی خنثی |
| زمان تحویل: | 3-7 روز کاری |
| شرایط پرداخت: | 100 ٪ TT از قبل |
| قابلیت ارائه: | 1000 عدد در ماه |
| سرعت: | 10 گرم | فیبر: | اس ام |
|---|---|---|---|
| طول موج: | 1310 نانومتر | فاصله: | 10 کیلومتر |

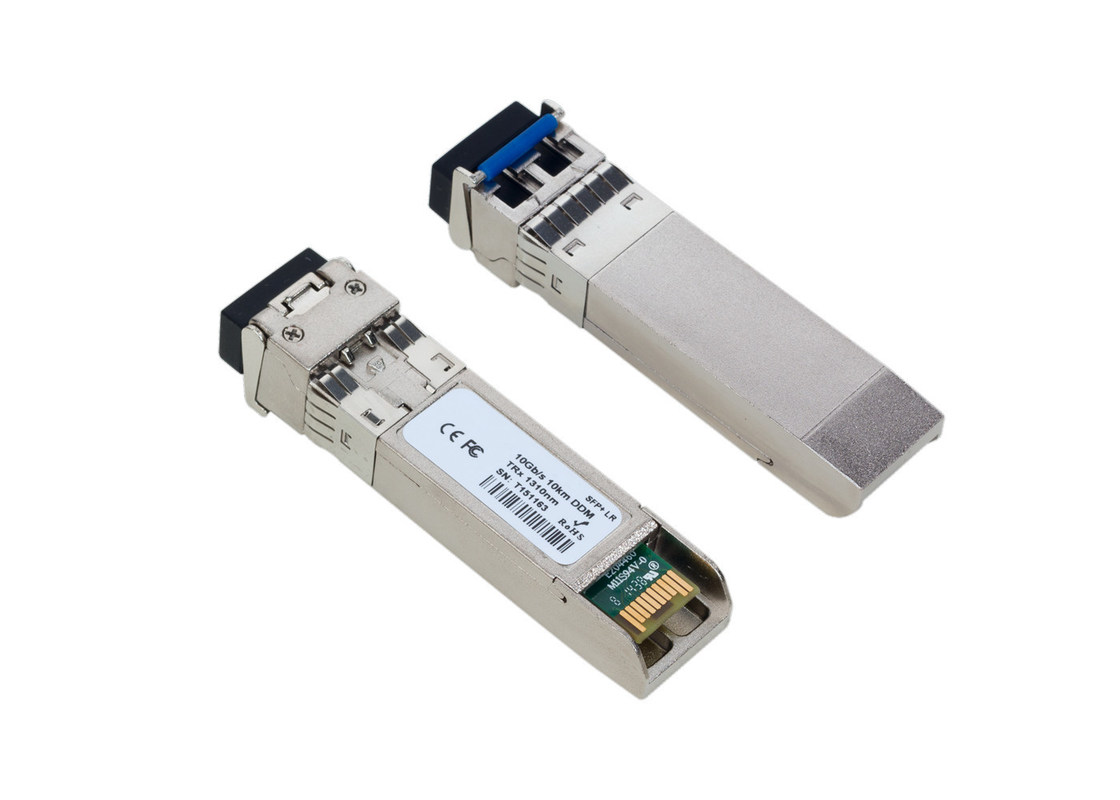

10GBASE-LR 1310nm 10km DDM SFP+ Transceiver
Features:
Applications:
Specification:
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1310 nm. |
| RX Wavelenght: | 1310 nm. |
| Minimum Optical Budget: | 9 dB |
| Maximum Distance: | 10km/20km |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power: | -5 dB |
| Maximum Transmitting Power: | 1 dB |
| Receiver Sensitivity: | -14 dBm |
| Receiver Overload: | 0.5 dBm |
| Dispersion: | 140-160 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
10G-SFP-20 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable.
It has minimum guaranteed optical budget of 9 dB, with in most cases is enough to reach about 20 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 10G-SFP-20 operates in Standard 0°-70°C temperature range and has Double LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
