| محل منبع: | چین |
| نام تجاری: | FLYROM |
| گواهی: | CE,ROHS |
| شماره مدل: | FY-DAC4x25G-CU1M |
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | Please send inquiry to sales@flyromtech.net |
| جزئیات بسته بندی: | بسته بندی خنثی |
| زمان تحویل: | 3-7 روز کاری |
| شرایط پرداخت: | T/T، L/C |
| قابلیت ارائه: | 1000 عدد در ماه |
| گارانتی: | 3 سال | نرخ داده: | 100G تا 4x25G |
|---|---|---|---|
| گواهی: | CE RoHS FCC | نام محصول: | کابل DAC 100Gb/s QSFP28 تا 4X25G SFP28 |
| رابط: | بسته Qsfp28 + 4XSFP28 | سازگار است: | QSFP28 MSA، H3C، Cisco، Juniper، Juniper/Cisco/Huawei/Brocade/Dell/HP/Extreme/ARISTA/H3C و غیره. |
| برنامه: | مرکز داده، مخابرات، Plug-and-Play | دما: | 0 تا +70 درجه سانتی گراد |
| طول: | 1 متر | نوع کابل: | 30AWG |

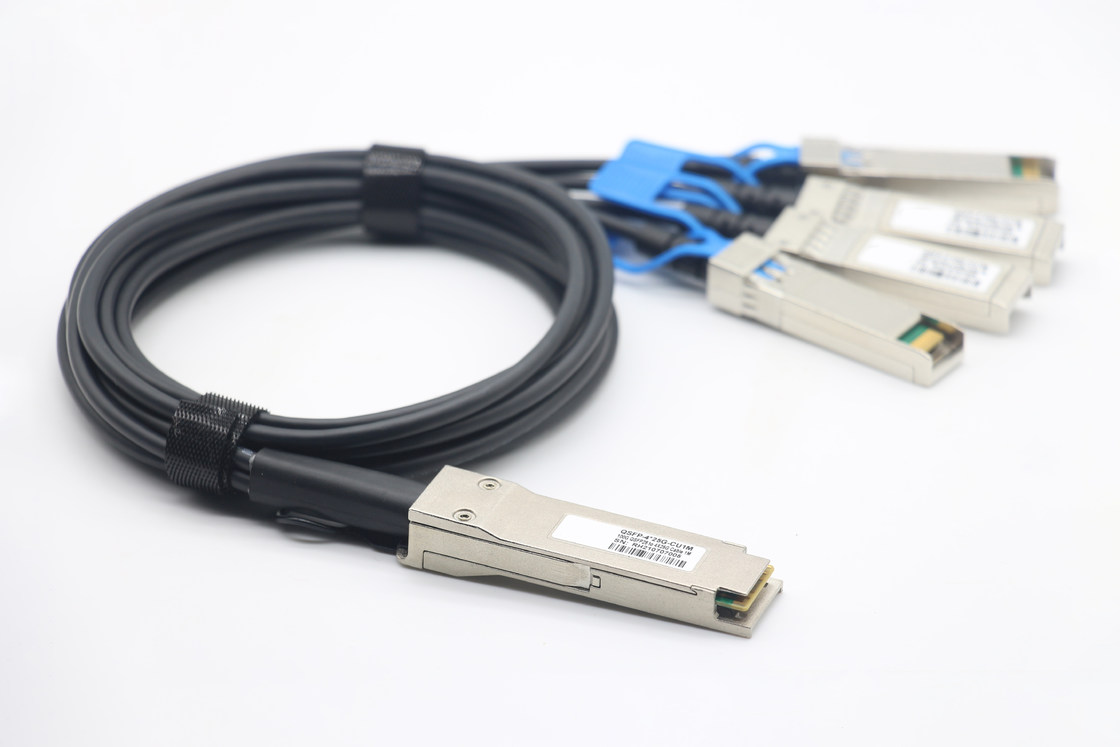

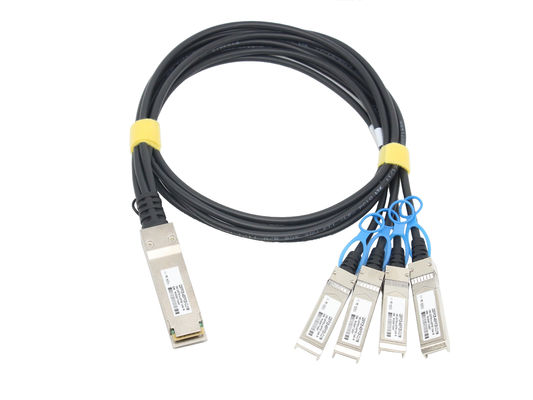

100G QSFP28 to 4x 25G SFP28 direct attach passive copper cable are suitable for very short distances and offer a highly cost-effective way to establish a 100-Gigabit link between QSFP28 and SFP28 equipment connections. These cables are used for 100GbE and Infniband standards, to maximize performance. The Hybrid cables are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 100Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The Hybrid cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (100 Gb/s) and Infiniband QDR ( 4x25 Gb/s per channel) specifications.
Features
Ø Supporting 100 Gbps to 4 x 25 Gbps
Ø Support data rates : 25.78Gb/s (per channel)
Ø IEEE 802.3bj 100GEBASE-CR4 and P802.3by compliant
Ø Compatible to SFP28 MSA and QSFP28 MSA
Ø Compatible to SFF-8402, SFF-8432 and SFF8665
Ø Maximum aggregate data rate: 100 Gb/s (4 x 25Gb/s)
Ø High-Density QSFP28 38-PIN and 4x SFP28 20-PIN Connector
Ø Copper link length up to 5m
Ø Power Supply : +3.3V
Ø Low crosstalk
Ø I2C based two-wire serial interface for EEPROM signature
which can be customized
Ø Operating Temperature: 0~ 70 °C
ROHS Compliantonnector
Applications
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
Mechanical Dimensions
Order Information:
| Part Number | Product Description |
| FY-DAC4x25G-CU1M | 100G QSFP28 to 4SFP28 Direct Attach Passive Cable, 1m, AWG:30 , 0ºC ~ +70ºC |
| FY-DAC4x25G-CU2M | 100G QSFP28 to 4SFP28 Direct Attach Passive Cable, 2m, AWG:30 , 0ºC ~ +70ºC |
| FY-DAC4x25G-CU3M | 100G QSFP28 to 4SFP28 Direct Attach Passive Cable, 3m, AWG:30 , 0ºC ~ +70ºC |
| FY-DAC4x25G-CU5M | 100G QSFP28 to 4SFP28 Direct Attach Passive Cable, 5m, AWG:24 , 0ºC ~ +70ºC |
Note: If you need customized services, please contact us.
