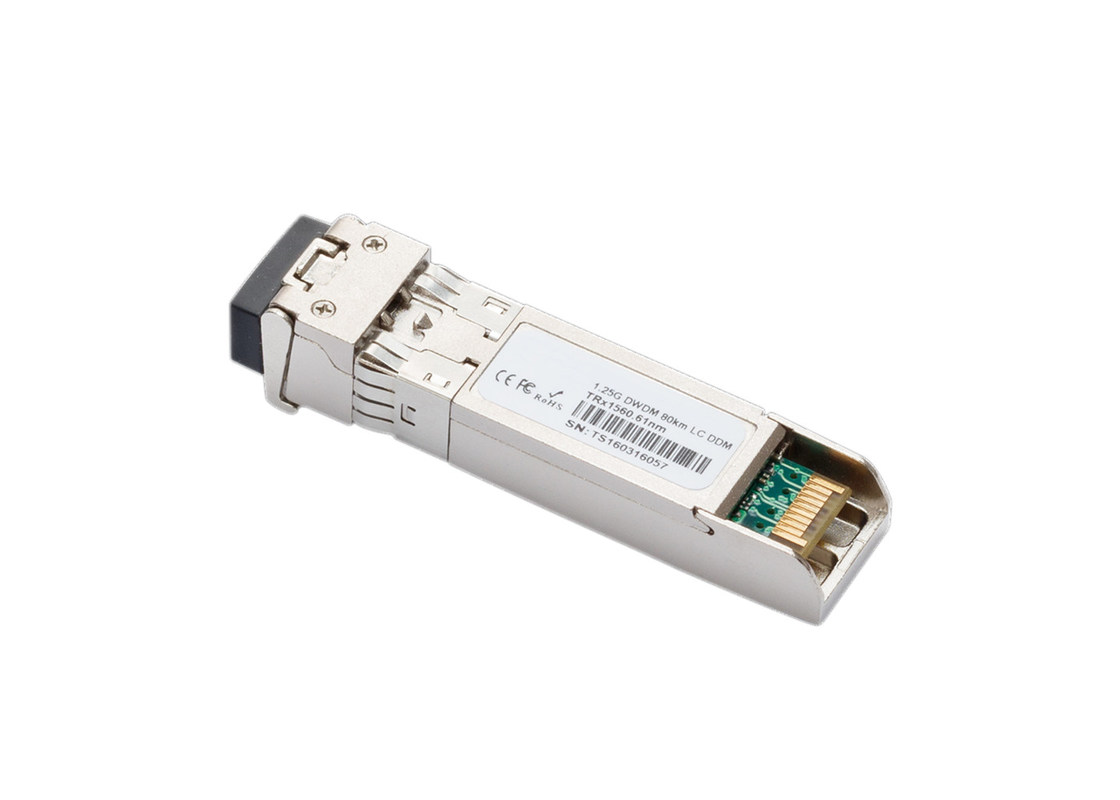

Name: 1.25G DWDM Transceiver Single Mode CH50 80KM with Multi Vendor MSA Compatible
Brand: Flyrom Technology Co.,Limited
SKU: DWDM-1.25G-SFP-80-50
Availability: InStock

خانه محصولات SFP/SFP+/XFP/QSFP/مصوّر مس

1.25G DWDM Transceiver Single Mode CH50 80KM with Multi Vendor MSA Compatible

جزئیات محصول:

محل منبع:	چین
نام تجاری:	FLYROM
گواهی:	CE/ROHS
شماره مدل:	DWDM-1.25G-SFP-80-50

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Please inquiry sales@flyromtech.net
جزئیات بسته بندی:	بسته بندی خنثی
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	100 ٪ TT از قبل
قابلیت ارائه:	1000 عدد در ماه

اکنون تماس بگیرید

توضیحات محصول جزئیات

سرعت:	1.25 گرم	فاصله:	80 کیلومتر
تایپ کنید:	اس ام	طول موج:	1537.40 نانومتر
بودجه نوری:	24 دسی بل	سازگاری:	MSA چند فروشنده

1.25Gb/s DWDM 80km CH50 SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM COOLED DFB&PIN, Single mode

Features:

Type:SFP
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: Ch. 50 (1537.40 nm) / ITU-T DWDM Grid 100 GHz C-Band
Media Type: Singe-Mode Fiber (SMF)
Optical Budget: 24 dB
Max. Distance: 80km
Data Rate: 1.063-1.25Gbps
Temperature:Standard 0°-70°C
Duplex LC connector
Single +3.3V Power Supply
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

Applications:

1G Fibre channel
DWDM Networks

Specification

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	Ch. 50 (1537.40 nm)
RX Wavelenght:	ITU-T DWDM Grid 100 GHz C-Band
Minimum Optical Budget:	24 dB
Maximum Distance:	80km
Supported Data Rate:	1.063-1.25Gbps
Supported Applications:	Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Double LC
Tx Wavelength Bandwidth:	100GHz (0.8nm)
Rx Wavelength Bandwidth:	1260 – 1620 nm
Minimum Transmitting Power:	0 dB
Maximum Transmitting Power:	2 dB
Receiver Sensitivity:	-24 dBm
Receiver Overload:	-3 dBm
Dispersion:	1600-1700 ps/nm
Transmitter Type:	DFB Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

DWDM-1.25G-SFP-80-50 is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 24 dB, with in most cases is enough to reach about 80 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength Ch. 50 (1537.40 nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. DWDM-1.25G-SFP-80-50 operates in Standard 0°-70°C temperature range and has Double LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
