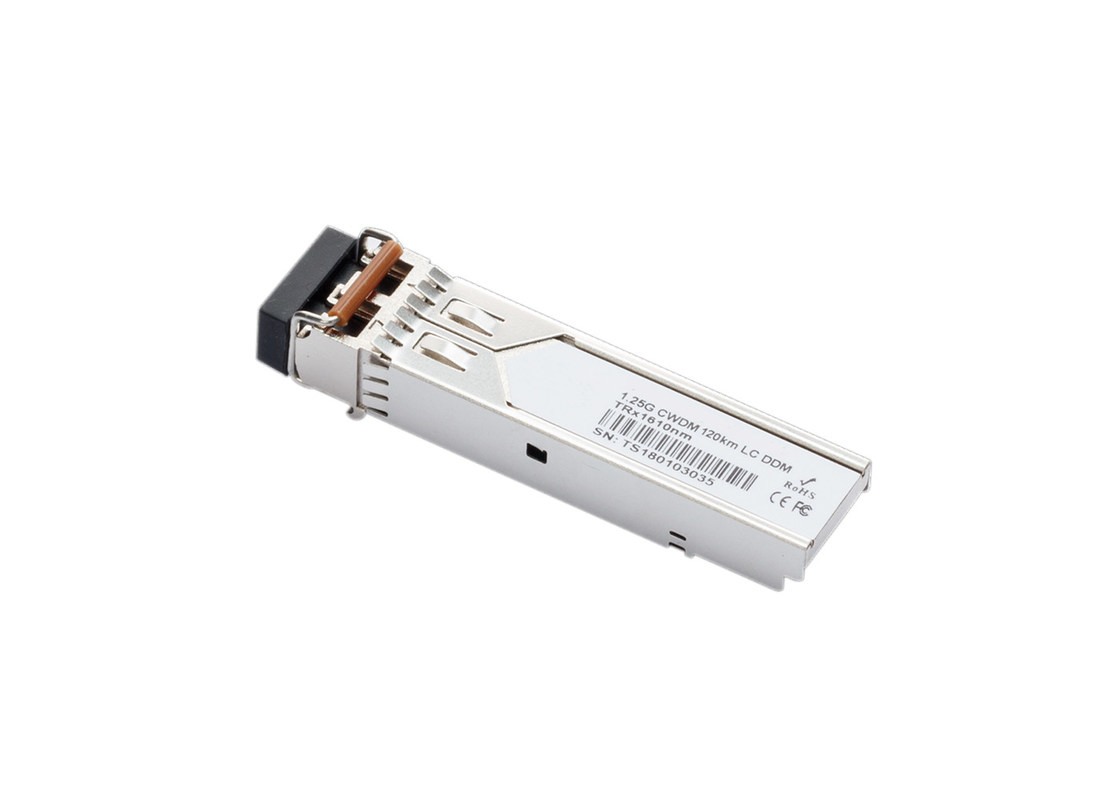

Name: 1.25G CWDM Transceiver Single Mode 1450nm 120KM with Multi Vendor MSA Compatible
Brand: Flyrom Technology Co.,Limited
SKU: CWDM-1.25G-SFP-120-45
Availability: InStock

خانه محصولات SFP/SFP+/XFP/QSFP/مصوّر مس

1.25G CWDM Transceiver Single Mode 1450nm 120KM with Multi Vendor MSA Compatible

جزئیات محصول:

محل منبع:	چین
نام تجاری:	FLYROM
گواهی:	CE/ROHS
شماره مدل:	CWDM-1.25G-SFP-120-45

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Please inquiry sales@flyromtech.net
جزئیات بسته بندی:	بسته بندی خنثی
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	100 ٪ TT از قبل
قابلیت ارائه:	1000 عدد در ماه

اکنون تماس بگیرید

توضیحات محصول جزئیات

سرعت:	1.25 گرم	فاصله:	120 کیلومتر
تایپ کنید:	اس ام	طول موج:	1450 نانومتر
بودجه نوری:	32DB	سازگاری:	MSA چند فروشنده

1.25Gb/s 120km 1450nm CWDM SFP Transceiver
Hot Pluggable, Duplex LC, +3.3V, 1270nm～1610nm, CWDM DFB, Single-mode, DDM

Features:

Type:SFP
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: 1450 nm / 1270-1610 nm
Media Type: Singe-Mode Fiber (SMF)
Optical Budget: 32 dB
Max. Distance: 120km
Data Rate: 1.063-1.25Gbps
Temperature:Standard 0°-70°C
Duplex LC connector
Single +3.3V Power Supply
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

Applications:

Gigabit Ethernet
Fiber Channel Switch Infrastructure
Router/Server interface
Other optical transmission systems

Specification

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	1450 nm
RX Wavelenght:	1270-1610 nm
Minimum Optical Budget:	32 dB
Maximum Distance:	120km
Supported Data Rate:	1.063-1.25Gbps
Supported Applications:	Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Double LC
Tx Wavelength Bandwidth:	20nm (1440 – 1460 nm)
Rx Wavelength Bandwidth:	G.694.2 CWDM Grid (1270-1610nm)
Minimum Transmitting Power:	0 dB
Maximum Transmitting Power:	5 dB
Receiver Sensitivity:	-32 dBm
Receiver Overload:	-7 dBm
Dispersion:	2600-2700 ps/nm
Transmitter Type:	DFB Laser
Receiver Type:	APD photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

CWDM-1.25G-SFP-120-45 is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 32 dB, with in most cases is enough to reach about 120 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1450 nm and 1270-1610 nm PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. CWDM-1.25G-SFP-120-45 operates in Standard 0°-70°C temperature range and has Double LC interface .

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.

If any question, please add JoJo's Wechat: jojo6616

Skype: jojo_he2010
