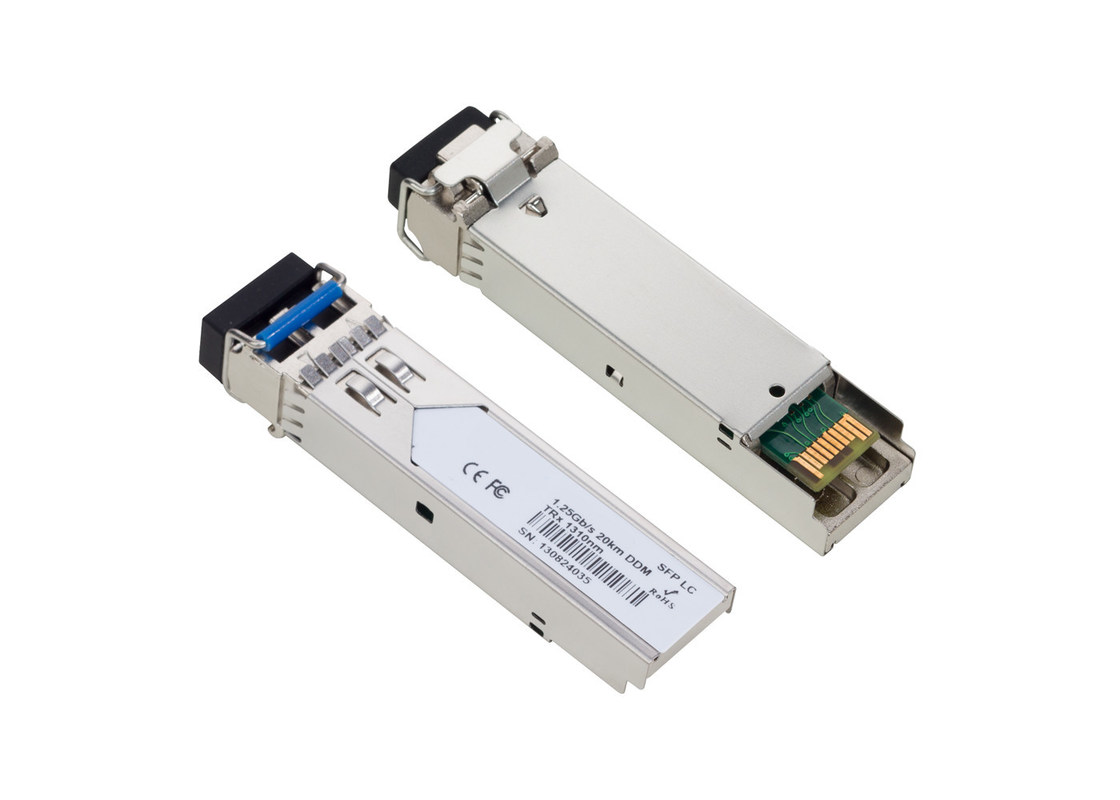

Name: 1.25G Single Mode MM SFP 1310nm 2KM Transceiver Multi Vendor MSA Compatible
Brand: Flyrom Technology Co.,Limited
SKU: 1.25G-SFP-2D
Availability: InStock

خانه محصولات SFP/SFP+/XFP/QSFP/مصوّر مس

1.25G Single Mode MM SFP 1310nm 2KM Transceiver Multi Vendor MSA Compatible

جزئیات محصول:

محل منبع:	چین
نام تجاری:	FLYROM
گواهی:	CE/ROHS
شماره مدل:	1.25G-SFP-2D

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Please inquiry sales@flyromtech.net
جزئیات بسته بندی:	بسته بندی خنثی
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	100 ٪ TT از قبل
قابلیت ارائه:	1000 عدد در ماه

اکنون تماس بگیرید

توضیحات محصول جزئیات

سرعت:	1.25 گرم	فاصله:	2 کیلومتر
تایپ کنید:	میلی متر	طول موج:	1310 نانومتر
بودجه نوری:	13 دسی بل	سازگاری:	MSA چند فروشنده

1.25G Multi Mode MM SFP 1310nm 20KM Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1310nm, VCSEL, Multi-mode

Features:

Type:SFP
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: 1310 nm. / 1310 nm.
Media Type: Multi-Mode Fiber (MMF)
Optical Budget: 13 dB
Max. Distance: 2km
Data Rate: 1.063-1.25Gbps
Temperature:Standard 0°-70°C
Duplex LC connector
Single +3.3V Power Supply
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

Applications:

Metro/Access Networks
1.25 Gb/s 1000Base-SX Ethernet
1×Fibre Channel
Other Optical Link

Specification

Media Type:	Multi-Mode Fiber (SMF)
TX Wavelength:	1310 nm.
RX Wavelenght:	1310 nm.
Minimum Optical Budget:	13 dB
Maximum Distance:	2km
Supported Data Rate:	1.063-1.25Gbps
Supported Applications:	Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Double LC
Tx Wavelength Bandwidth:	100 nm (1260-1360 nm)
Rx Wavelength Bandwidth:	100 nm (1260-1360 nm)
Minimum Transmitting Power:	-9 dB
Maximum Transmitting Power:	3 dB
Receiver Sensitivity:	-22 dBm
Receiver Overload:	-3 dBm
Dispersion:	140-160 ps/nm
Transmitter Type:	FP Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

1.25G-SFP-2D is Multi-Vendor MSA Compatible SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 13 dB, with in most cases is enough to reach about 2 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality FP Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. 1.25G-SFP-2D operates in Standard 0°-70°C temperature range and has Double LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.

If any question, please add JoJo's Wechat: jojo6616

Skype: jojo_he2010
