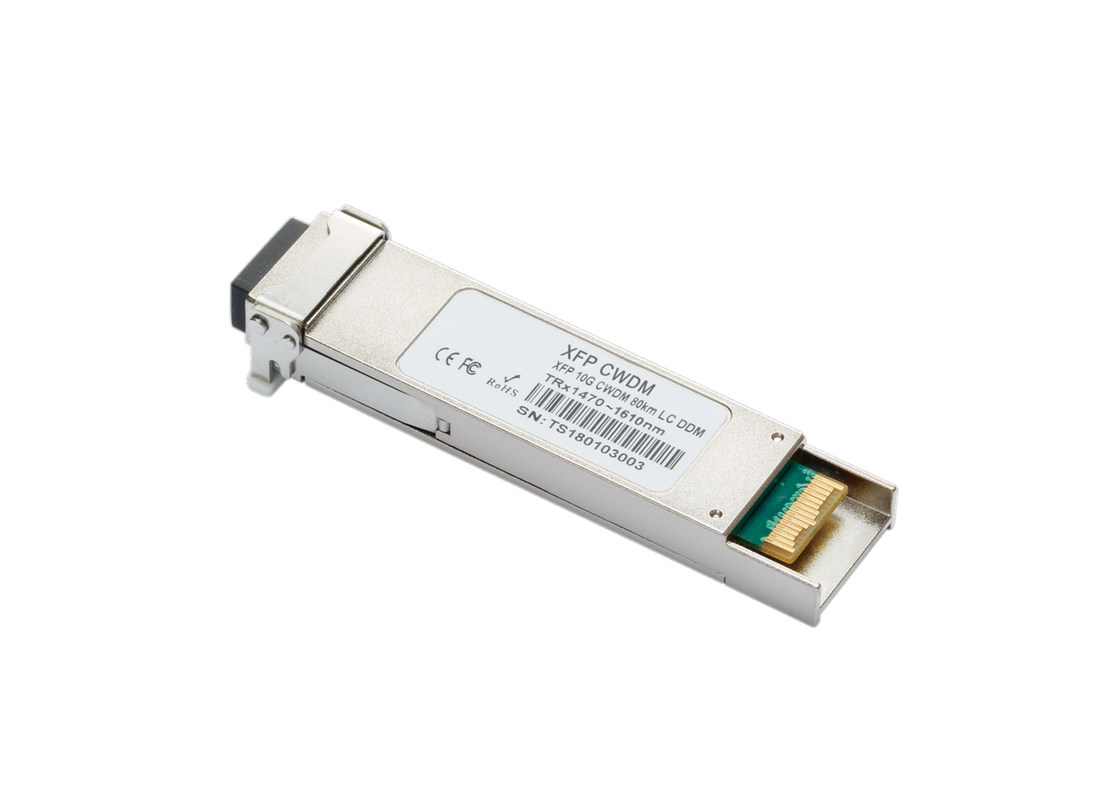

10G XFP CWDM 1530nm 80km DDM XFP Transceiver
Hot Pluggable, Duplex LC, 1470～1610nm, CWDM EML, Single mode
Features:
- Type: XFP
- Supports 9.95 to 11.3Gb/s bit rates
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength: 1530 nm / 1270-1610 nm
- Media Type: Single-Mode Fiber (SMF)
- Optical Budget: 23 dB
- Max. Distance: 80 km
- Data Rate: 9.95-11.32Gbps
- Temperature:Standard 0°-70°C
- Power Supply :+3.3V
- Power consumption<1.5W
Applications:
- 10GBASE-ZR/EW Ethernet
- Sonet OC-192/SDH
- 10G Fibre channel
- CWDM Networks
Specificaton
| Media Type: |
Single-Mode Fiber (SMF) |
| TX Wavelength: |
1530 nm |
| RX Wavelenght: |
1270-1610 nm |
| Minimum Optical Budget: |
23dB |
| Maximum Distance: |
80km |
| Supported Data Rate: |
1.24-11.32Gbps |
| Supported Applications: |
10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps),
10G Fiber Channel (10.52 Gbps), 8G Fiber Channel
(8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel
(2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16
(2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps),
ODU1 (2.498Gbps), ODU2 (10.037Gbps), ODU2e
(10.399Gbps), OTU1 (2.66Gbps), OTU2 (10.70Gbps),
OTU1f (11.27Gbps), OTU2f (11.32Gbps), OTU1e
(11.049Gbps), OTU2e (11.095Gps)
|
| DDM/DOM: |
Support |
| Temperature Range: |
Standard 0°-70°C |
| Connectors: |
Double LC |
| Tx Wavelength Bandwidth: |
20nm (1460 – 1480 nm) |
| Rx Wavelength Bandwidth: |
G.694.2 CWDM Grid (1270-1610nm) |
| Minimum Transmitting Power: |
0 dB |
| Maximum Transmitting Power: |
4 dB |
| Receiver Sensitivity: |
-23 dBm |
| Receiver Overload: |
-10 dBm |
| Dispersion: |
1600 ps/nm |
| Transmitter Type: |
EML Laser |
| Receiver Type: |
PIN photodiode |
| CDR (Clock and Data Recovery) chip |
Supported |
| Power: |
+3.3V single power supply |
| Chipset: |
MAXIM, MINDSPEED, SEMTECH |
| Compliance: |
CE, Class 1 FDA and IEC60825-1 Laser Safety
Compliant, INF-8077i XFP MSA Rev.4.5, RoHS
|
CWDM-10G-XFP-80-53 is Multi-Vendor MSA Compatible XFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1530 nm and 1270-1610 nm PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. CWDM-10G-XFP-80-53 operates in Standard 0°-70°C temperature range and has Double LC interface. .
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
