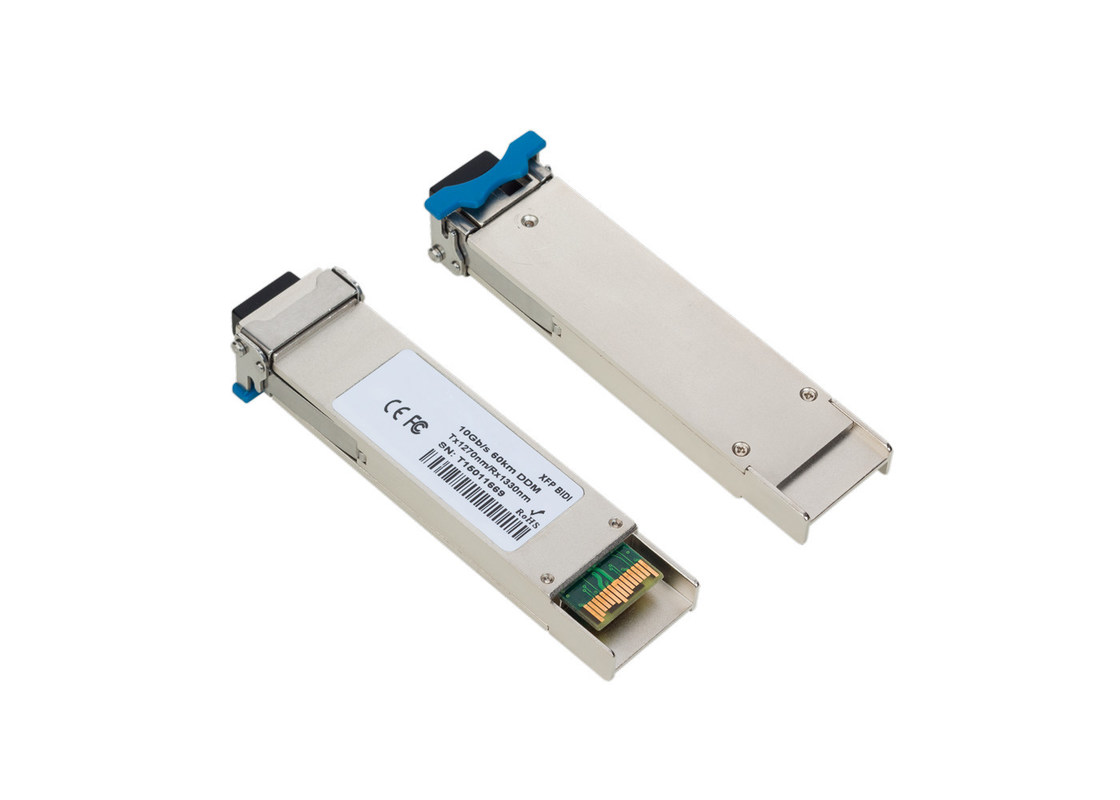

Name: 10GB XFP BIDI 1490/1550 80km DDM XFP Transceiver
Brand: Flyrom Technology Co.,Limited
SKU: BIDI-10G-XFP-80A
Availability: InStock

خانه محصولات SFP/SFP+/XFP/QSFP/مصوّر مس

10GB XFP BIDI 1490/1550 80km DDM XFP Transceiver

جزئیات محصول:

محل منبع:	چین
نام تجاری:	FLYROM
گواهی:	CE/ROHS
شماره مدل:	BIDI-10G-XFP-80A

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Please inquiry sales@flyromtech.net
جزئیات بسته بندی:	بسته بندی خنثی
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	100 ٪ TT از قبل
قابلیت ارائه:	1000 عدد در ماه

اکنون تماس بگیرید

توضیحات محصول جزئیات

سرعت:	10 گرم	فاصله:	80 کیلومتر
تایپ کنید:	XFP BIDI	طول موج:	1490/1550 نانومتر
بودجه:	23db	سازگاری:	MSA چند فروشنده

10G BIDI 1490/1550nm 80km DDM XFP Transceiver

Hot Pluggable, Single LC, +3.3V, 1490nm/1550nm CWDM EML, DDM

Features:

Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable XFP footprint
Single LC for Bi-directional Transmission
Maximum link length of 80km
Built-in 1490/1550 WDM Filter
Uncooled 1490nm or 1550nm CWDM EML Laser.
Power dissipation <1.5W
No Reference Clock required
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS Compliant Part

Applications:

10GBASE-LR/LW Ethernet
SONET OC-192 / SDH
10G Fibre Channel

Specificaton

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	1490 nm.
RX Wavelenght:	1550 nm.
Minimum Optical Budget:	23 dB
Maximum Distance:	80km
Supported Data Rate:	1.24-11.32Gbps
Supported Applications:	10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16 (2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps), ODU1 (2.498Gbps), ODU2 (10.037Gbps), ODU2e (10.399Gbps), OTU1 (2.66Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps), OTU2e (11.095Gps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Single LC
Tx Wavelength Bandwidth:	40 nm (1470-1510 nm)
Rx Wavelength Bandwidth:	40 nm (1530-1570 nm)
Minimum Transmitting Power:	0 dB
Maximum Transmitting Power:	5 dB
Receiver Sensitivity:	-23 dBm
Receiver Overload:	-7 dBm
Dispersion:	1600 ps/nm
Transmitter Type:	EML Laser
Receiver Type:	APD Photodiode
CDR (Clock and Data Recovery) chip	Supported
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8077i XFP MSA Rev.4.5, RoHS

BIDI-10G-XFP-80A is Multi-Vendor MSA Compatible XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1490 nm. and 1550 nm. APD Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. BIDI-10G-XFP-80A operates in Standard 0°-70°C temperature range and has Single LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.

If any question, please add JoJo's Wechat: jojo6616

Skype: jojo_he2010
