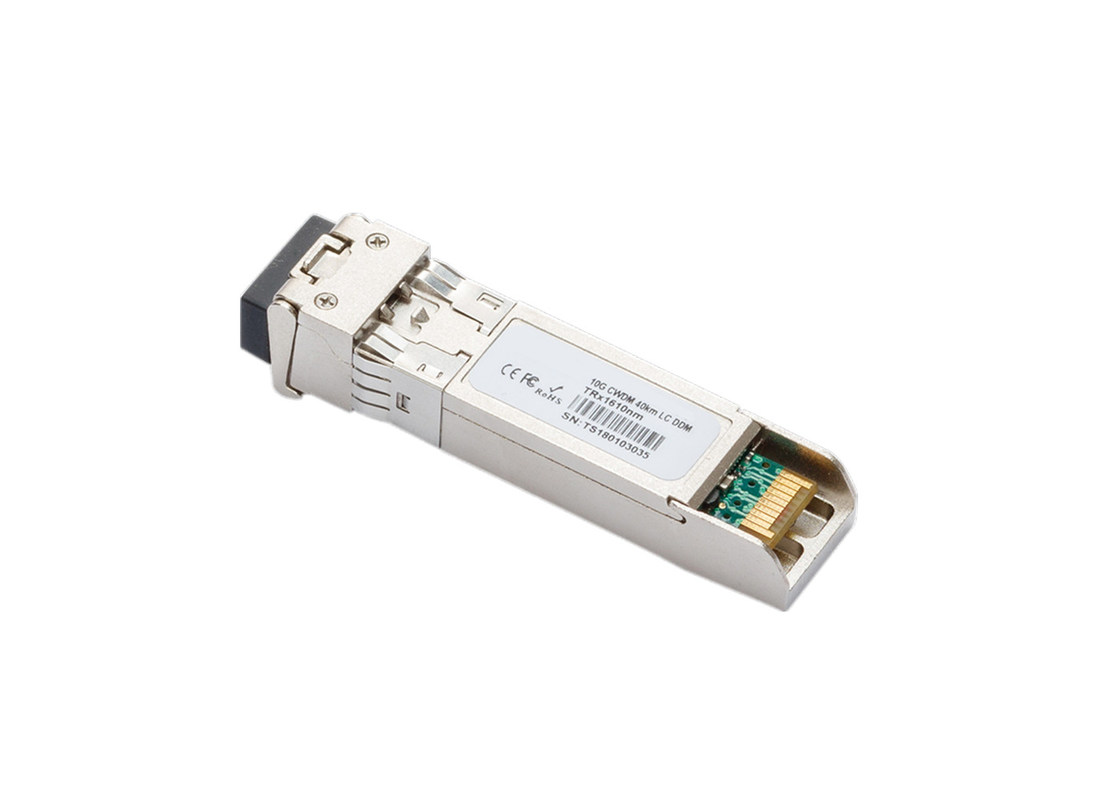

Name: 10G SFP+ CWDM 1350nm 10km DDM SFP+ Transceiver with Huawei Compatible
Brand: Flyrom Technology Co.,Limited
SKU: CWDM-10G-SFP-10-35
Availability: InStock

خانه محصولات SFP/SFP+/XFP/QSFP/مصوّر مس

10G SFP+ CWDM 1350nm 10km DDM SFP+ Transceiver with Huawei Compatible

جزئیات محصول:

محل منبع:	چین
نام تجاری:	FLYROM
گواهی:	CE/ROHS
شماره مدل:	CWDM-10G-SFP-10-35

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Please inquiry jade@flyromtech.net
جزئیات بسته بندی:	بسته بندی خنثی
زمان تحویل:	3-7 روز کاری
شرایط پرداخت:	100 ٪ TT از قبل
قابلیت ارائه:	1000 عدد در ماه

اکنون تماس بگیرید

توضیحات محصول جزئیات

سرعت:	10 گرم	فاصله:	10 کیلومتر
تایپ کنید:	CWDM	طول موج:	1350 نانومتر
بودجه نوری:	9dB	سازگاری:	MSA چند فروشنده

10G SFP+ CWDM 1350nm 10km DDM SFP+ Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1270～1450nm, CWDM DFB, Single mode

Features:

Type:SFP+
Supports 9.95 to 11.3Gb/s bit rates
Compatibility:Multi-Vendor MSA Compatible
Tx/Rx Wavelength: 1350 nm / 1270-1610 nm
Media Type: Single-Mode Fiber (SMF)
Optical Budget: 9 dB
Max. Distance: 10 km
Data Rate: 9.95-11.32Gbps
Temperature:Standard 0°-70°C
Power Supply :+3.3V
Power consumption<1.5W

Applications:

10GBASE-ER/EW Ethernet
Sonet OC-192/SDH
10G Fibre channel
CWDM Networks

Specificaton

Media Type:	Single-Mode Fiber (SMF)
TX Wavelength:	1350 nm
RX Wavelenght:	1270-1610 nm
Minimum Optical Budget:	9 dB
Maximum Distance:	10km
Supported Data Rate:	9.95-11.32Gbps
Supported Applications:	10G Ethernet (10.31Gbps), STM-64 (9.95Gbps), ODU2 (10.037Gbps), ODU2e (10.399Gbps), OTU2 (10.70Gbps), OTU1f (11.27Gbps), OTU2f (11.32Gbps), OTU1e (11.049Gbps), OTU2e (11.095Gps)
DDM/DOM:	Support
Temperature Range:	Standard 0°-70°C
Connectors:	Double LC
Tx Wavelength Bandwidth:	20nm (1260 – 1280 nm)
Rx Wavelength Bandwidth:	G.694.2 CWDM Grid (1270-1610nm)
Minimum Transmitting Power:	-6 dB
Maximum Transmitting Power:	1 dB
Receiver Sensitivity:	-15 dBm
Receiver Overload:	0.5 dBm
Dispersion:	70-100 ps/nm
Transmitter Type:	DFB Laser
Receiver Type:	PIN photodiode
Power:	+3.3V single power supply
Chipset:	MAXIM, MINDSPEED, SEMTECH
Compliance:	CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA

CWDM-10G-SFP-10-35 is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 9 dB, with in most cases is enough to reach about 10 km distance.

However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1350 nm and 1270-1610 nm PIN Photodiode receiver.

It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. CWDM-10G-SFP-10-35 operates in Standard 0°-70°C temperature range and has Double LC interface.

All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.

If any question, please add Jade
