| محل منبع: | چین |
| نام تجاری: | FLYROM |
| گواهی: | CE/ROHS |
| شماره مدل: | BIDI-10G-SFP-60B |
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | Please inquiry jade@flyromtech.net |
| جزئیات بسته بندی: | بسته بندی خنثی |
| زمان تحویل: | 3-7 روز کاری |
| شرایط پرداخت: | 100 ٪ TT از قبل |
| قابلیت ارائه: | 1000 عدد در ماه |
| سرعت: | 10 گرم | فاصله: | 60 کیلومتر |
|---|---|---|---|
| طول موج ها: | 1330/1270 نانومتر | تایپ کنید: | بادی |
| بودجه نوری: | 21 دسی بل | سازگاری: | سازگار با چند فروشنده MSA |

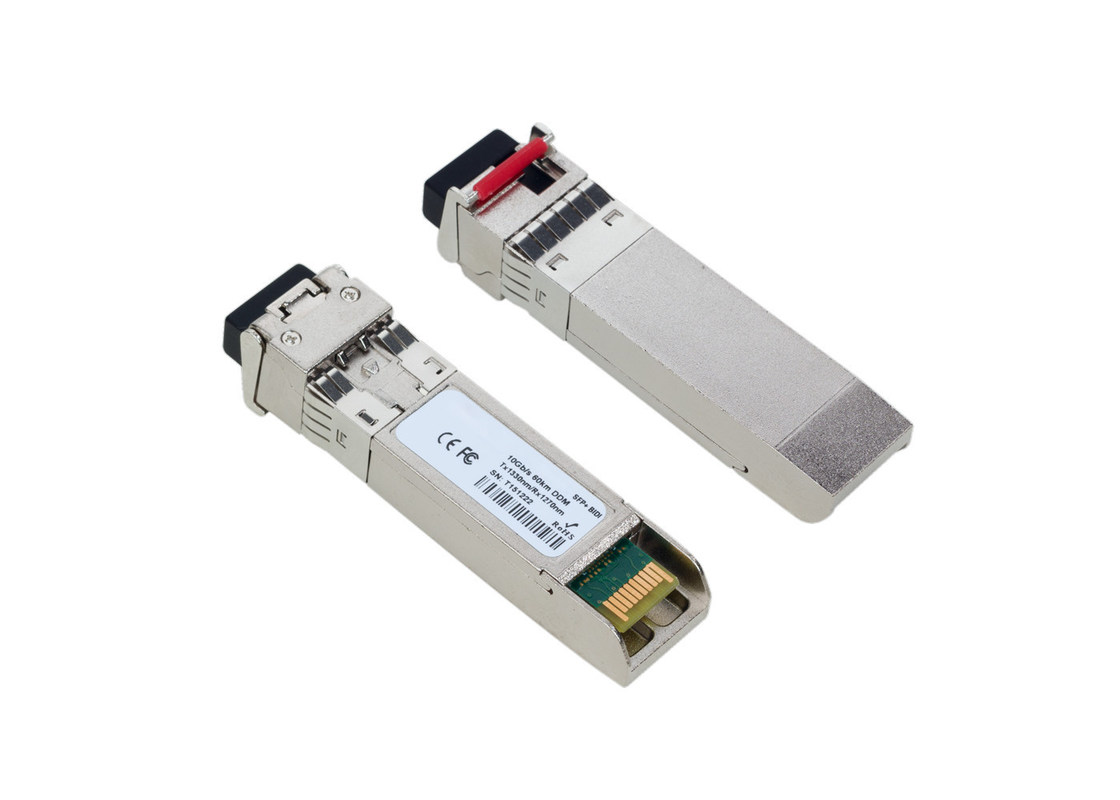

10G BIDI 1330/1270nm 60km DDM SFP+ Transceiver
Hot Pluggable, Single LC, +3.3V, 1330nm/1270nm CWDM DFB, DDM
Features:
Applications:
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1330 nm. |
| RX Wavelenght: | 1270 nm. |
| Minimum Optical Budget: | 21 dB |
| Maximum Distance: | 60km |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Single LC |
| Tx Wavelength Bandwidth: | 40 nm (1250-1290 nm) |
| Rx Wavelength Bandwidth: | 40 nm (1310-1350 nm) |
| Minimum Transmitting Power: | -1 dB |
| Maximum Transmitting Power: | 6 dB |
| Receiver Sensitivity: | -20 dBm |
| Receiver Overload: | -6 dBm |
| Dispersion: | 400-800 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | APD photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
BIDI-10G-SFP-60B is Multi-Vendor MSA Compatible SFP+ (Small Form factor Pluggable) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 21 dB, with in most cases is enough to reach about 60 km distance.
However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1270 nm. and 1330 nm. PIN Photodiode receiver.
It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. BIDI-10G-SFP-60B operates in Standard 0°-70°C temperature range and has Single LC interface.
All our fiber transceivers are 100% compatible with major brands like Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.,
We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.
We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
