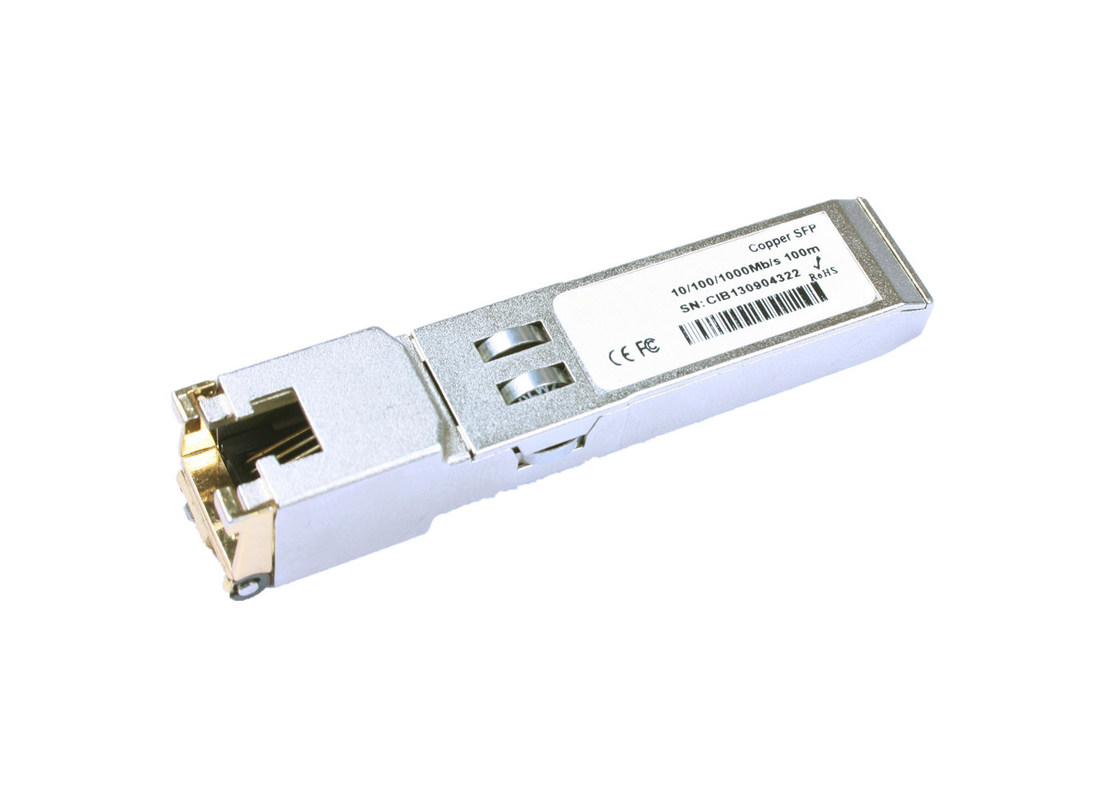

10/100/1000BASE-T Copper SFP Transceiver All brands compatiable

10/100/1000BASE-T Copper SFP Transceiver

Features:

• Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Extended case temperature range (-40°C to +85°C )
• Fully metallic enclosure for low EMI
• Low power dissipation
• Compact RJ-45 connector assembly
• Detailed product information in EEPROM
• +3.3V single power supply
• Access to physical layer IC via 2-wire serial bus
• 10/100/1000 BASE-T operation in host systems with SGMII interface
• Compliant with SFP MSA
• Compliant with IEEE Std 802.3TM-2002
• Compliant with FCC 47 CFR Part 15, Class B
• RoHS Compliant Products

Description:

10/100/1000BASE-T 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable.

The 10/100/1000BASE-T supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modula-tion (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The 10/100/1000BASE-T provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

Applications:

• 1.25 Gigabit Ethernet over Cat 5 cable
• Switch/Router to Switch/Router Link
• High speed I/O for file severs

All our fiber transceivers are 100% compatible with major brands like  Cisco, Huawei,  Extreme, HP, Finisar,  Broadcom, Foundry, Alcatel,  D-link,   Enterasys,  Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback,  H3C, ZTE, Ruijie,  Ciena , Alcatel-lucent, etc.,

We provide OEM/ODM service to our customers,Our price is far lower than our competitors due to our good material sourcing at lower cost.

We will work hard to fit your minimum quantity orders and also organized and schedule all shipping to your office.
